What Is a Hydraulic Crane?

A hydraulic crane is a lifting machine that uses hydraulic power to perform one or more crane movements. Its hydraulic system generally consists of a pump, hydraulic fluid, control valves, cylinders or hydraulic motors, filters, hoses, and associated components.

The pump supplies pressurized fluid, while control valves direct the fluid to the required mechanism. Hydraulic cylinders can extend or retract to move a boom or another structural component. Hydraulic motors may operate mechanisms such as winches or slewing systems, depending on the crane design.

The crane's structural frame, boom, hook, wire rope, winch, and supporting equipment work together to lift and position loads. Outriggers or stabilizers may provide additional support on mobile cranes.

Hydraulic cranes differ in size and configuration. A compact workshop crane may handle machinery components, while a large mobile crane may lift heavy industrial equipment or construction materials. The correct model depends on the load, working conditions, and required lifting operations.

How Hydraulic Crane Designs Work

Hydraulic crane operation is based on the principle that pressure applied to a confined fluid can transmit force through the system. Hydraulic cylinders convert this pressure into linear movement, which can raise, lower, or extend crane components.

The main operating sequence typically includes the following steps:

1. The engine or electric motor powers a hydraulic pump.

2. The pump circulates hydraulic fluid through the system.

3. Control valves direct the fluid toward the selected cylinder or hydraulic motor.

4. The actuator moves the boom, winch, or another mechanism.

5. The operator controls the crane's movement through the designated controls.

6. Hydraulic valves and safety systems help regulate movement and reduce the risk of uncontrolled load motion.

The lifting capacity of a crane is not determined by hydraulic pressure alone. Structural strength, boom geometry, counterweight, stability, rope capacity, and the distance between the load and the crane's center of rotation also matter.

For this reason, operators must use the manufacturer's load chart and follow the approved operating procedure for the crane's actual configuration.

Main Types of Hydraulic Cranes

Hydraulic cranes are available in several designs. Each type serves different lifting requirements and operating environments.

1. Hydraulic Mobile Cranes

Mobile hydraulic cranes are mounted on wheeled or tracked carriers and can be transported between work locations. Many use telescopic booms operated by hydraulic cylinders.

They are commonly used in construction, industrial maintenance, equipment installation, and infrastructure projects. Their mobility can reduce the need to assemble a stationary lifting system at every worksite.

However, their use depends on road access, ground conditions, setup space, and the crane's rated capacity at the required working radius.

2. Hydraulic Truck-Mounted Cranes

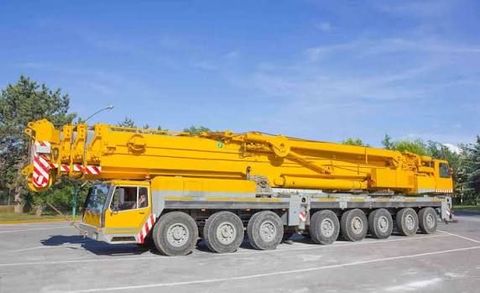

Truck-mounted cranes combine a road vehicle with a hydraulic lifting system. The crane is usually installed on the truck chassis or a dedicated mounting platform.

These cranes are useful for delivering and unloading construction materials, machinery parts, pipes, and other equipment. They can also support maintenance work where materials must be lifted directly from the vehicle.

Stabilizers are commonly used to support the crane during lifting. The operator must account for the truck's configuration, ground conditions, load distribution, and available setup space.

3. Hydraulic Crawler Cranes

Hydraulic crawler cranes move on tracks rather than conventional road wheels. Their tracked undercarriage distributes the machine's weight over a larger ground-contact area than many wheeled arrangements.

They are used on large construction projects, industrial sites, and selected infrastructure developments. Some crawler cranes can travel short distances with a load, but this is permitted only when the manufacturer explicitly allows it and the required conditions are met.

Crawler cranes can require substantial transport and assembly planning, especially for large models.

4. Hydraulic Rough-Terrain Cranes

Rough-terrain cranes are designed for construction and industrial locations where surfaces may be uneven or access may be difficult. They generally have large tires, a compact chassis, and a telescopic boom.

They are used at industrial facilities, construction projects, and maintenance sites where conventional road cranes may not be practical.

Their suitability still depends on ground bearing capacity, slope limits, tire conditions, and the manufacturer's operating requirements.

5. Hydraulic All-Terrain Cranes

All-terrain cranes combine road-travel capability with features intended for selected off-road working conditions. Many have multiple axles, telescopic booms, and sophisticated hydraulic control systems.

They are used for industrial plant installation, infrastructure construction, and lifting large equipment across different work locations.

Because of their size and complexity, route planning, setup space, transport restrictions, and ground preparation are important considerations.

6. Hydraulic Jib and Workshop Cranes

Jib cranes use a projecting arm to move loads within a defined working area. Depending on the design, the arm may rotate around a vertical support or extend from a wall-mounted structure.

Hydraulic workshop cranes and engine cranes are commonly used for lifting machinery parts, motors, tools, and maintenance equipment. Some are compact and mobile, making them useful in workshops with limited floor space.

Their load capacity and reach are generally more limited than those of large mobile cranes, so the intended lifting task must be assessed carefully.

Comparison of Hydraulic Crane Designs

The best design depends on the worksite layout, required lifting range, frequency of use, and the characteristics of the loads being handled.

Role of Hydraulic Cranes in Industrial Material Handling

Industrial material handling involves moving raw materials, components, machinery, and finished products through production and distribution processes. Hydraulic cranes support these activities by lifting loads that are too heavy, bulky, or awkward for manual handling.

Moving Heavy Machinery

Factories frequently need to install, reposition, or replace motors, pumps, compressors, presses, and other machinery. Hydraulic cranes can lift these items into position while reducing dependence on manual lifting methods.

The operation still requires appropriate rigging, a suitable lifting plan, and checks for clearance and load stability.

Loading and Unloading Materials

Truck-mounted and mobile cranes can help load or unload equipment, steel sections, pipes, and industrial components. Their use can reduce the need to move loads through multiple handling stages.

Correct load securing, lifting-point selection, and exclusion zones are essential during these operations.

Supporting Manufacturing Processes

Some industrial facilities use cranes to move large assemblies between production areas, position equipment during fabrication, or support maintenance work. The appropriate crane design depends on how frequently lifting occurs and whether the load follows a repeated route.

In some facilities, overhead cranes or other fixed lifting systems may be more appropriate than mobile hydraulic cranes.

Construction and Infrastructure

Hydraulic cranes are widely used to position structural steel, precast concrete components, equipment skids, and construction materials. Their reach and lifting capabilities support work at different elevations and across large work areas.

Planning must consider nearby structures, overhead power lines, weather, and ground stability.

Port and Industrial Yard Operations

Certain hydraulic cranes are used to handle equipment, maintenance materials, and selected cargo in ports and industrial yards. Specialized container-handling and shipboard cranes may use hydraulic systems, although not all cranes in these settings share the same design.

The load type, operating cycle, corrosion exposure, and required reach influence equipment selection.

Key Components of a Hydraulic Crane

Understanding the main components helps users evaluate equipment requirements and recognize maintenance needs.

• Hydraulic pump: Supplies pressurized fluid to the hydraulic circuit.

• Hydraulic cylinders: Convert fluid pressure into movement for boom lifting, extension, or other functions.

• Control valves: Direct and regulate hydraulic fluid.

• Hydraulic reservoir: Stores the system's hydraulic fluid.

• Filters: Help remove contaminants from the fluid.

• Boom: Supports the lifting mechanism and provides reach.

• Winch and wire rope: Raise and lower loads on cranes that use this arrangement.

• Hook and lifting accessories: Connect the crane to the load through suitable rigging.

• Outriggers or stabilizers: Provide additional support where the crane design requires them.

• Safety and monitoring systems: May include load indicators, limit devices, interlocks, and other controls.

The exact configuration varies by crane type. Not every hydraulic crane uses the same combination of cylinders, winches, boom sections, and stabilizers.

Benefits and Limitations of Hydraulic Cranes

Benefits

Controlled lifting and movement: Hydraulic systems can provide smooth, adjustable movements when properly designed and operated.

High lifting capability: Appropriate crane designs can handle substantial loads within their rated operating limits.

Flexible configurations: Hydraulic power supports a wide range of mobile, truck-mounted, crawler, and specialized crane designs.

Efficient positioning: Telescopic booms and hydraulic movements can help operators position loads in locations that would otherwise be difficult to access.

Reduced manual handling: Cranes can reduce the need for workers to manually lift heavy materials, helping improve material-handling efficiency.

Adaptability: Different attachments and configurations can support specialized lifting tasks when approved for the crane.

Limitations

High initial and operating costs: Large cranes may require substantial purchase, rental, transport, fuel, and maintenance expenditure.

Hydraulic system maintenance: Fluid contamination, leaks, damaged hoses, and component wear can affect reliability.

Space requirements: Mobile cranes often need sufficient clearance and room for stabilizers or outriggers.

Stability risks: Excessive loads, unsuitable ground, incorrect setup, or improper boom positioning can cause serious accidents.

Weather sensitivity: Wind, rain, poor visibility, and other environmental conditions may restrict lifting operations.

Operator training requirements: Crane operators need appropriate training, authorization, and familiarity with the specific machine.

Hydraulic cranes are most effective when their capabilities are matched to the task and the operating procedure is followed consistently.

Latest Trends and Innovations in Hydraulic Crane Design

Hydraulic crane technology continues to develop as manufacturers work to improve operating precision, equipment monitoring, energy use, and workplace safety.

1. Intelligent Load Monitoring

Modern cranes may include load moment indicators, rated-capacity limiters, and electronic monitoring systems. These features help operators assess lifting conditions and identify when a planned lift approaches the machine's permitted operating limits.

Their functions vary by crane model, and they do not replace load charts, proper planning, or operator judgment.

2. Remote-Controlled Crane Operation

Some hydraulic cranes support remote controls that allow operators to work from a suitable position with a clear view of the lifting area. Remote operation can be useful when handling bulky materials or working in confined industrial environments.

The operator must still maintain awareness of the load, nearby workers, and potential hazards.

3. Electrohydraulic Systems

Electrohydraulic systems combine electrical controls with hydraulic actuators. Depending on the application, this arrangement can improve movement precision and support integration with automated control systems.

Some designs also use electric power sources or hybrid configurations to reduce engine idling and local emissions.

4. Telematics and Predictive Maintenance

Connected crane systems can record operating hours, machine status, fault codes, and maintenance information. Fleet managers can use these records to plan inspections and identify recurring issues.

Predictive maintenance may help detect developing problems, but its effectiveness depends on data quality, sensor availability, and appropriate technical interpretation.

5. Improved Stability and Control

Newer crane designs may incorporate advanced control systems, configurable outrigger monitoring, and operator-assistance features. These technologies can help manage complex lifting operations, provided the equipment is configured correctly and used within its approved limits.

Top Hydraulic Crane Manufacturers and Solutions

Several established manufacturers supply hydraulic cranes for construction, transport, industrial maintenance, and material handling. Their product ranges differ, so comparisons should focus on the intended application rather than brand recognition alone.

Official websites for product specifications and company information:

• Tadano: https://www.tadano.com/

• PALFINGER: https://www.palfinger.com/

• HIAB: https://www.hiab.com/

• Liebherr: https://www.liebherr.com/

• Manitowoc: https://www.manitowoc.com/

These manufacturers offer different types of lifting equipment; not every model is a hydraulic crane, and product availability varies by market. The list is illustrative rather than a ranking. Buyers should confirm local availability, specifications, warranty terms, spare-parts access, and authorized service arrangements before making a decision.

How to Choose the Right Hydraulic Crane

Choosing the correct crane starts with understanding the lifting task and the environment in which it will operate.

Step 1: Determine the Load Weight

Calculate the total suspended load, including lifting accessories such as slings, hooks, spreader beams, and other equipment where required by the load chart.

The crane must be rated for the actual load at the intended working radius and configuration, not merely have a maximum capacity that exceeds the load's weight.

Step 2: Assess the Required Reach

Determine the horizontal distance from the crane's center of rotation to the load, as well as the required lifting height.

A longer boom or greater reach can reduce available lifting capacity. Review the manufacturer's load chart for the precise boom length, angle, radius, counterweight, and outrigger configuration.

Step 3: Evaluate the Worksite

Consider ground bearing capacity, available setup space, overhead obstructions, access routes, and proximity to electrical lines.

For indoor operations, also consider floor loading, ceiling height, ventilation, and turning space.

Step 4: Select the Appropriate Crane Design

A truck-mounted crane may suit frequent delivery and unloading work, while a crawler crane may be more appropriate for certain large construction projects. A workshop crane may be sufficient for routine machinery maintenance.

The design should reflect the lifting frequency, mobility requirements, load dimensions, and worksite constraints.

Step 5: Review Safety and Control Features

Evaluate available load monitoring, rated-capacity protection, emergency stops, visibility, operator controls, and stabilization systems.

Confirm which safety features are included as standard and which depend on the selected configuration.

Step 6: Compare Total Ownership Costs

Consider purchase or rental cost, transport, fuel or electricity, operator training, inspections, spare parts, servicing, and expected downtime.

For occasional lifting, renting a suitable crane may be more practical than purchasing one. Frequent, predictable lifting requirements may justify a dedicated machine.

Hydraulic Crane Selection Checklist

Use this checklist when evaluating a crane for an industrial operation.

• The maximum load and lifting accessories have been identified.

• The required lifting height and working radius are known.

• The crane's load chart covers the planned configuration.

• The ground or floor can support the crane and its loads.

• There is sufficient clearance for the boom, load, and counterweight.

• Stabilizers or outriggers can be deployed as required.

• Suitable rigging equipment is available and inspected.

• The operator has the required training and authorization.

• Inspection, maintenance, and spare-parts support are available.

• The lifting plan accounts for environmental conditions and nearby hazards.

For complex or high-risk lifting operations, a competent lifting professional should verify the equipment selection and lifting plan before work begins.

Hydraulic Crane Maintenance and Best Practices

Routine maintenance helps preserve hydraulic performance, reduce unexpected failures, and support safe operation.

Inspect the Hydraulic System

Check hoses, fittings, cylinders, seals, and connections for leaks, abrasion, corrosion, and damage. Hydraulic leaks should be addressed promptly. Never use hands to search for pressurized fluid leaks because fluid injection injuries can be severe.

Monitor Hydraulic Fluid

Use the fluid grade specified by the manufacturer. Check the fluid level and condition, and replace fluid and filters according to the maintenance schedule.

Contamination can damage pumps, valves, cylinders, and other hydraulic components.

Examine Structural Components

Inspect the boom, pins, welds, hooks, wire ropes, and other load-bearing components for cracks, deformation, wear, or damage. Follow the manufacturer's inspection procedures and applicable regulations.

Test Safety Systems

Check load monitoring systems, limit switches, alarms, emergency stops, and other protective devices at the intervals specified for the equipment.

Any malfunction affecting safe operation should be assessed before the crane is returned to service.

Follow Safe Operating Procedures

Operators should use the correct load chart, maintain communication with signalers, establish exclusion zones, and avoid sudden movements that may destabilize the load.

Loads should not be lifted beyond the rated capacity or moved over people. Work near power lines requires appropriate clearance and precautions under applicable regulations.

Maintain Service Records

Record inspections, repairs, hydraulic fluid changes, component replacements, and identified defects. These records help maintenance teams identify recurring problems and plan servicing.

Maintenance and repair work should be performed by qualified personnel, with the crane isolated and secured against unintended movement.

Frequently Asked Questions

1. What is the main purpose of a hydraulic crane?

Its main purpose is to lift, move, and position heavy or bulky loads using hydraulic power. It is used in construction, manufacturing, logistics, industrial maintenance, and other material-handling operations.

2. How does a hydraulic crane lift heavy loads?

A pump pressurizes hydraulic fluid and directs it through control valves to cylinders or motors. These components operate the crane's boom, winch, or other mechanisms. The crane's structure and stability systems support the load within its rated limits.

3. Which hydraulic crane is suitable for industrial material handling?

The right type depends on the load, working radius, lifting height, worksite access, and frequency of use. Mobile cranes provide flexibility, truck-mounted cranes support delivery and unloading, and workshop cranes suit localized maintenance tasks.

4. What factors affect hydraulic crane lifting capacity?

Important factors include working radius, boom length and angle, counterweight, outrigger configuration, structural limits, rope capacity, and ground conditions. The manufacturer's load chart determines the permitted capacity for a specific configuration.

5. Are hydraulic cranes suitable for indoor use?

Some compact workshop and specialized cranes are suitable for indoor environments. The selection must account for floor loading, ceiling clearance, maneuverability, ventilation where relevant, and the crane's rated capacity.

6. How often should a hydraulic crane be inspected?

Inspection frequency depends on the equipment, operating conditions, manufacturer instructions, and applicable regulations. Pre-use checks, scheduled inspections, and additional inspections after damage or significant repairs may be required.

7. What are common hydraulic crane problems?

Common problems include hydraulic leaks, contaminated fluid, worn seals, damaged hoses, pump issues, control-valve faults, and abnormal movement. Structural damage and worn lifting accessories also require attention.

8. Are hydraulic cranes more efficient than mechanical lifting systems?

They can provide controlled movement, flexible positioning, and high lifting capability in suitable applications. However, efficiency depends on the task, equipment design, operating cycle, maintenance requirements, and energy consumption. No single system is best for every lifting operation.

Conclusion

Hydraulic crane designs support a wide range of industrial material-handling activities, from moving machinery within factories to positioning heavy equipment on construction sites. Their hydraulic systems provide controlled movement, while different crane configurations address different requirements for mobility, reach, and lifting capacity.

Choosing the right crane requires careful consideration of load weight, working radius, operating environment, stability, safety systems, and lifecycle costs. Proper operator training, planned maintenance, and adherence to manufacturer instructions are equally important for dependable operation.

The most practical approach is to select a crane based on the actual lifting task rather than maximum capacity alone. When the equipment, worksite, and operating procedures are properly matched, hydraulic cranes can support organized material flow, reduce manual handling, and improve the reliability of industrial lifting operations.
